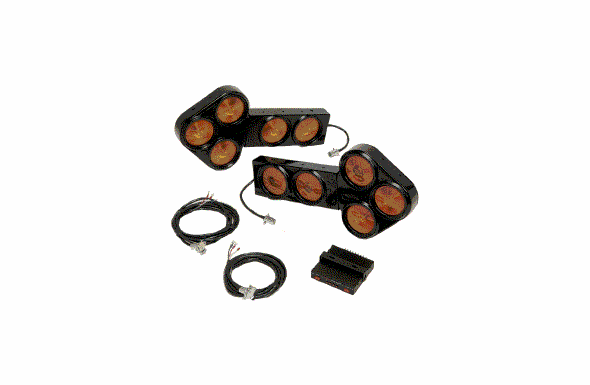

Two-piece arrow board comes with a control box, heavy-
duty cables, plug-in connectors and plastic dust covers.
Each panel has five 4" diameter lamps which are available
in your choice of Standard LED PAR 36 lights with 16
high-intensity LEDs, Ultra-Bright LED PAR 36 Lights with
52 high-intensity LEDs, or incandescent lamps. All lamps
are shock-mounted and weather-sealed.
Lamps flash 60 times per minute in four operational modes:
right arrow, left arrow, double arrow and corner lamps.
Cab-mounted, 3-relay control box has on/off and mode
selection switches and pilot lights that indicate flash
patterns. It connects easily to the Arrow Board with a
15' pre-wired harness and comes with a bale mounting
bracket and all necessary wiring.
Heavy-duty threaded inserts in each arrow panel
accommodate a variety of mounting applications.
Boards are constructed of heavy-gauge, epoxy-coated
aluminum.
Board mounting brackets sold separately.
Specifications:
12 volt control box
Maximum amp draw: 21 amps
Dimensions:
Controller 1 1/4" H x 6" W x 6 1/4" D
Each Panel 13" H x 24" W x 2 1/2" D
Weight: 4.3 lbs. each panel
