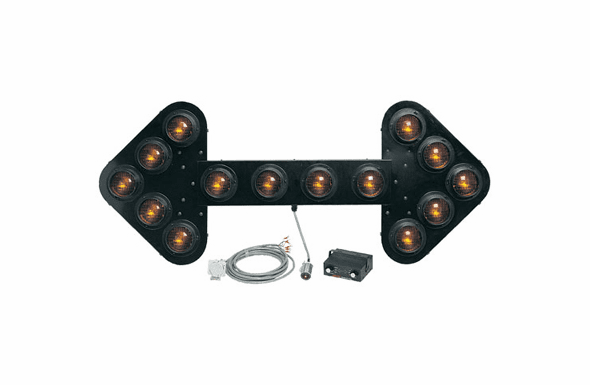

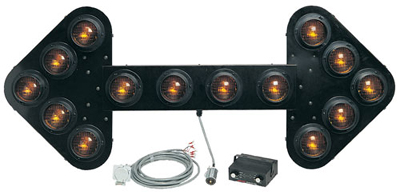

Able2 Sho-Me - Large Standard LED Arrow Board 02.7016
Features:
Fourteen 4” diameter PAR 36 Standard LED lamps in each large arrow board.
60 FPM in five operational modes: Progressive sequential right arrow, left arrow and double arrow,
Simultaneous center bar and four corner caution.
All lamps are weather-sealed and shock-mounted.
High-impact plastic Sun Shields increase lamp visibility up to ½ mile.
Cab-mounted, 3-relay control box has mode selection switches, flash pattern indicator lights and day / night intensity settings.
Includes a 20” pre-wired harness.
Fourteen threaded inserts in the Arrow Board frame accommodate a wide variety of mounting applications.
Heavy-gauge, epoxy-coated aluminum housing.
Arrow board mounting brackets sold separately.
Specifications:
12 volt
Maximum amp draw: 4 amps LED
Controller Dimensions: 2 1/4" H x 6” W x 5 1/8" D
Arrow Panel Dimensions: 24” H x 60” W x 5 1/2 " D (Including Sun Shields)
Weight: 28 lbs.
02.7016 Large LED Arrow Board
16 LEDs per Lamp
