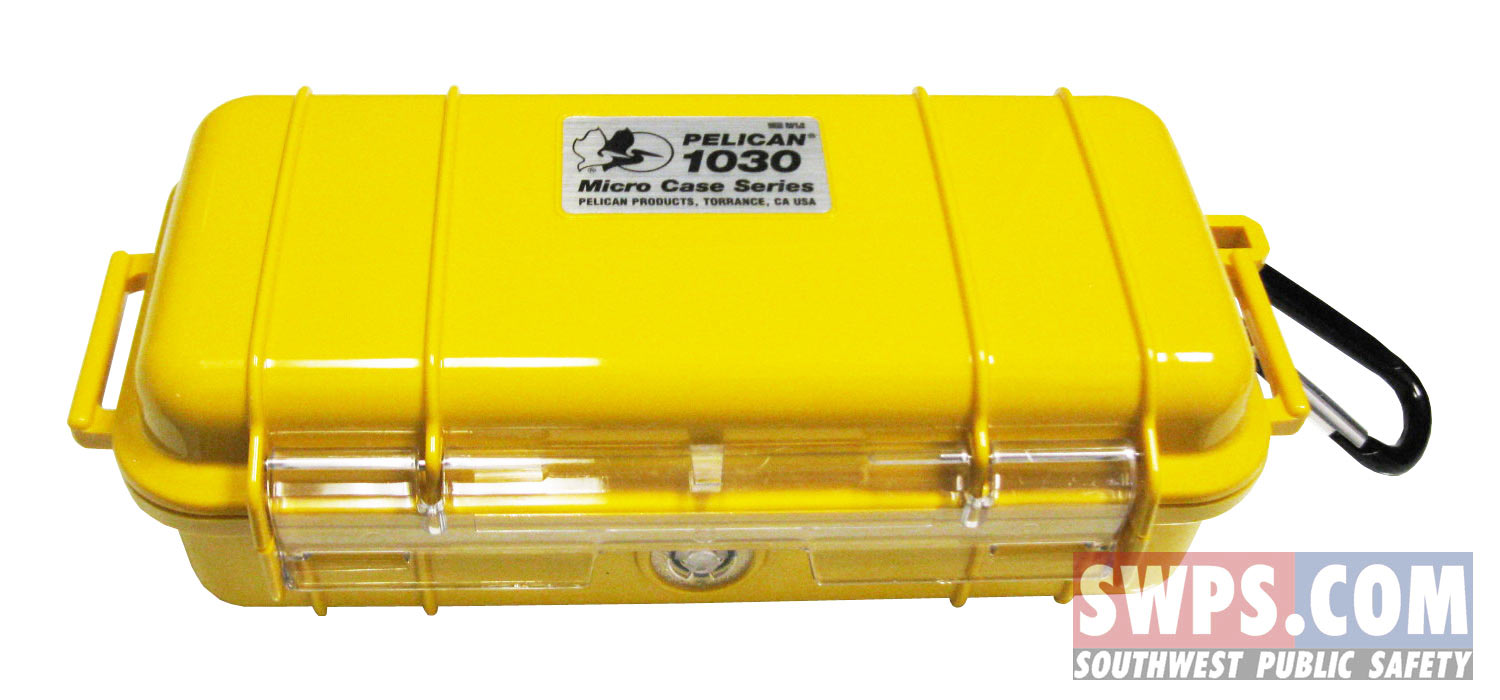

1030 Pelican Micro Case - Yellow

Pelican 1030 Micro Case

Solid Yellow Case

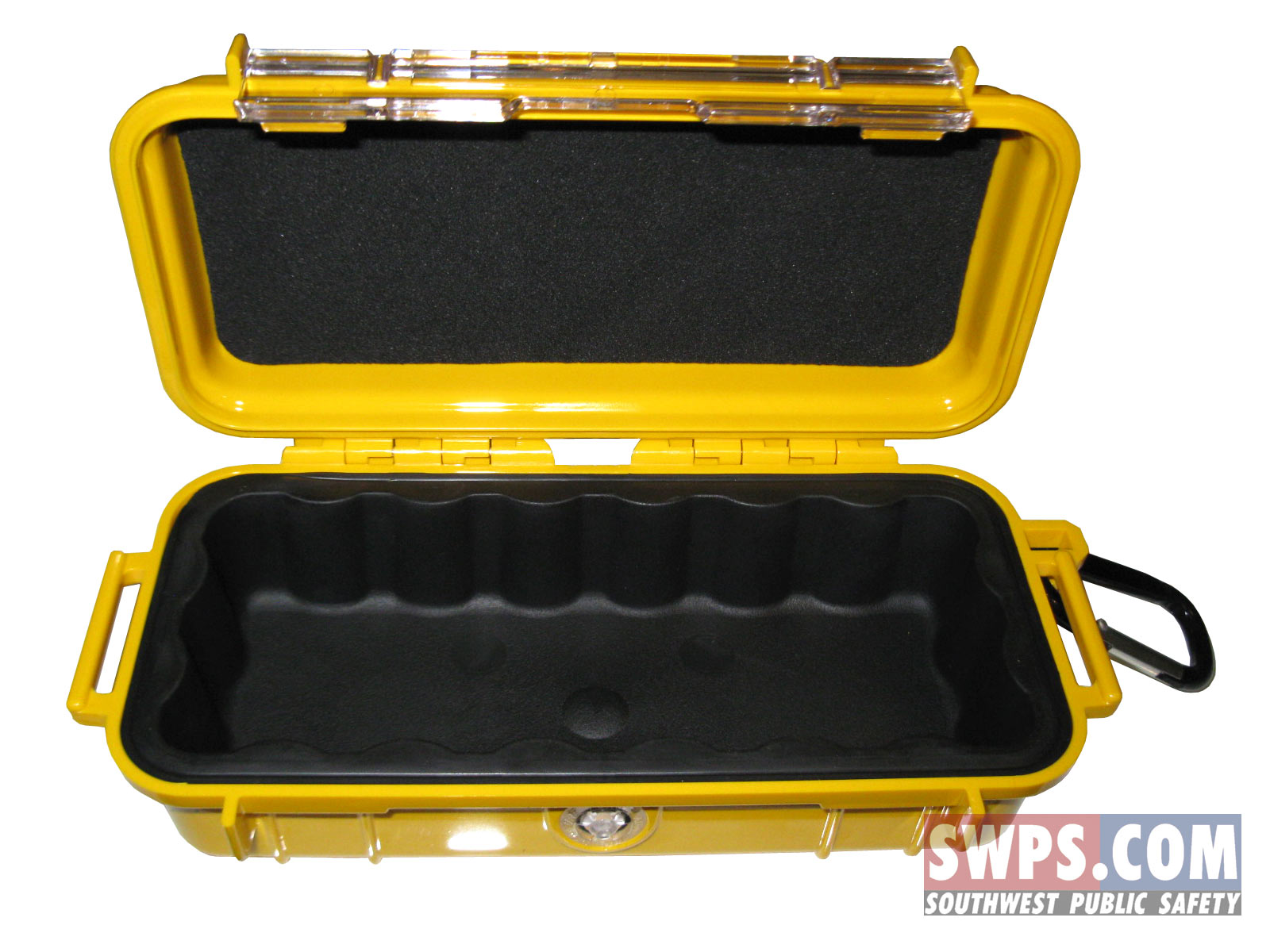

Black Removable Liner

Carabiner Clip

The #1030 Micro Case is a range of cases to protect your valuable small items. They have the same look as larger Pelican, plus they combine an attractive style, and offer the legendary strength of Pelican Protector Cases™.

With the Micro Cases you will be able to protect your cell phone, photographic camera, Personal Digital Assistants (PDA), electronic games, pager, radio, and other valuable small items.

Micro Cases will totally protect your valuables, as they are crush-proof, dust-proof and have an automatic pressure purge valve. Every Micro™ case is available in solid color or clear with matching liner and speed lock.

They come with a carabiner clip for easy attachment & detachment.

The Micro Cases are excellent for trips or outdoor activities when you need to protect your valuables from water, falls, knocks, sun, atmospheric changes, etc. and as they are small sized so they can fit into luggage, bags, glove compartments, other Pelican Protector Cases™ and so on.

And remember, smaller does not mean less strong, the Micro™ Cases are just as durable as the larger models. Unconditionally guaranteed… forever.

Pelicans Micro Case Series are perfect for housing electronics, games, cell phone, Palm Pilot, pager and more! They are equipped with an automatic pressure purge valve, are dustproof, crushproof and submersible to 50 feet.

Pelican 1030 Micro Case Features

Great for rugged sports - Not for Swimming or Submerging

Easy open latch

Rubber liner for extra protection doubles as o-ring seal

Automatic Pressure Equalization Valve - balances interior pressure, keeps water out

Stainless steel hardware

Carabiner Clip

Lifetime Guarantee of Excellence

Water resistant, crushproof, and dust proof

IP67 Certificate (1 meter submersion for 30 minutes)

Pelican 1030 Micro Case Specifications
Material: Polycarbonate
Exterior Dimensions (L x W x D): 7.50" x 3.87" x 2.43" (19 x 9.8 x 6.2 cm)
Interior Dimensions (L x W x D): 6.37" x 2.62" x 2.06" (16.2 x 6.7 x 5.2 cm)
Lid Depth: 0.69" (1.8 cm)
Bottom Depth: 1.25" (3.2 cm)
Total Depth: 1.94" (4.9 cm)
Weight with foam: 0.61 lbs. (0.28 kg)
Weight without foam: 0.6 lbs. (0.27 kg)
Buoyancy Max. 0.99 lbs. (0.45 kg)
Range Temperature: -10 / 199.4° F (-23 / 93° C)

NSN #
6760-01-503-9080 - 1030 Micro Case, Clear W/Black Liner
6760-01-503-9086 - 1030 Micro Case, Clear W/Red Liner
6760-01-503-9082 - 1030 Micro Case, Clear W/Yellow Liner
6760-01-503-9078 - 1030 Micro Case, Solid Black



Case Certificates
Pelican 1030 Micro Case IP67 Testing Results (3.9 MB / PDF)
