Code 3 Remote Rocker Max Pak Switch 450R-L6

Code 3 Remote Rocker Max Pak Switch 450R-L6
Allows user to easily program, customize, and control unique warning packages with a single rocker switch box.

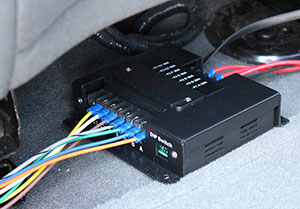

Simplifies installation with a compact, lightweight switch box that can be mounted in small, tight spaces, e.g., trunk, under seat, behind second row truck bench.
Allows user to quickly identify and switch through functions with a backlit controller.

Features
Top three buttons can be programmed as progressive level 1, 2, 3 outputs.
All six can be programed as independent momentary, on/off, and timed output. (8 sec)
Rubber membrane buttons are backlit in blue lighting.
Fuse box located on top of switch box for easy accessibility.

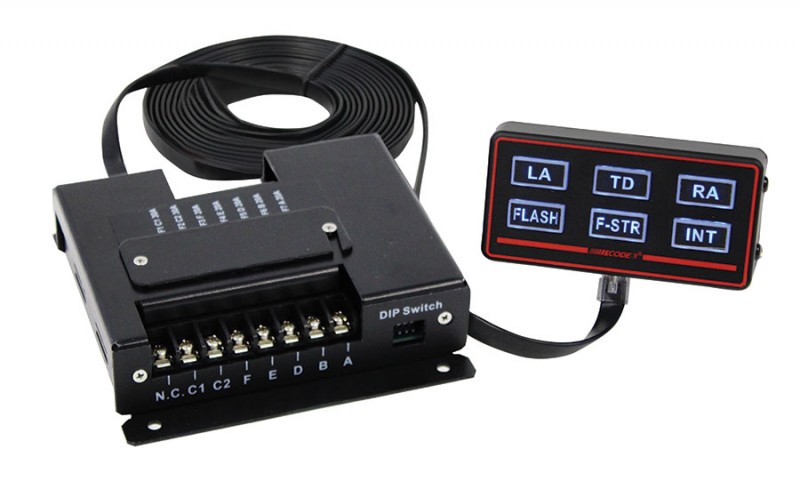

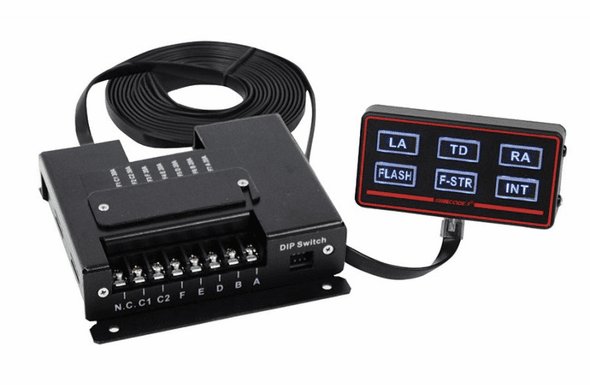

15 foot cable between controller and switch box.
Swivel style bracket or mount.

Specifications
Switch Box: 5.2” W x 5.3” L x 1.5” D. (132 x 135 x 38 mm)
Control head: 2” W x 3.9” L x 0.9” D. (51 x 99 x 23 mm)
12VDC.
Switch box: Four-hole flange mounting on base.
Controller: Two mounting holes provided on controller bracket.
One 40 ampere and five 15 ampere connections.
SAE J575 Environmental.
Two-year warranty.
Switch Box: 1.1 lbs.
Controller: 0.2 lbs.
Standby Current: 85 mA.
Operation Temperature: -40ºC (40ºF) to +77ºC (170ºF).
