Code 3 M180 Intersection/Mirror/Puddle LED Lighthead

Code 3 M180 Intersection/Mirror/Puddle LED Lighthead

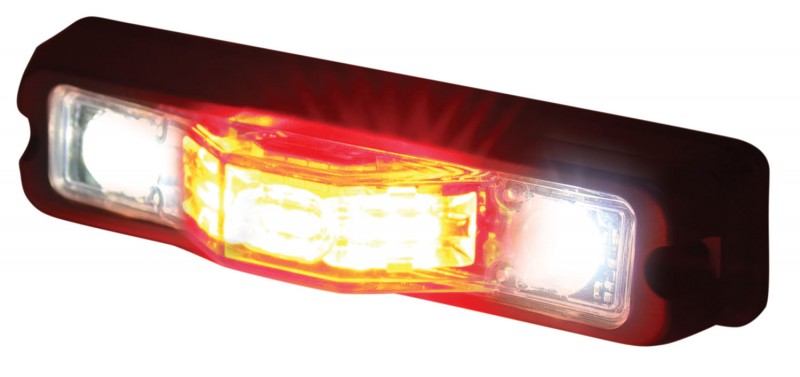

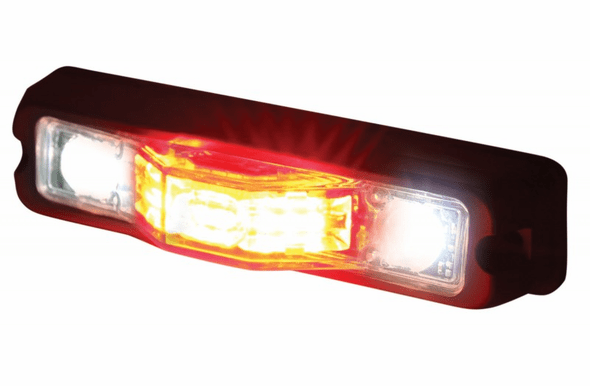

The M180 combines 3 lights into one compact form - Intersection Light, a Takedown Light, and a Puddle Light.

Features:

• 3 distinct functions: 180 degree warning, Takedown, and Puddle Light
• The Puddle Light shines down to create a 5 foot diameter bright white ground light
• Can be mounted anywhere an MR6 can
• Uses the same bezel and rear mounting holes as the MR6 light. Any brackets designed to fit the MR6 will also work with the M180

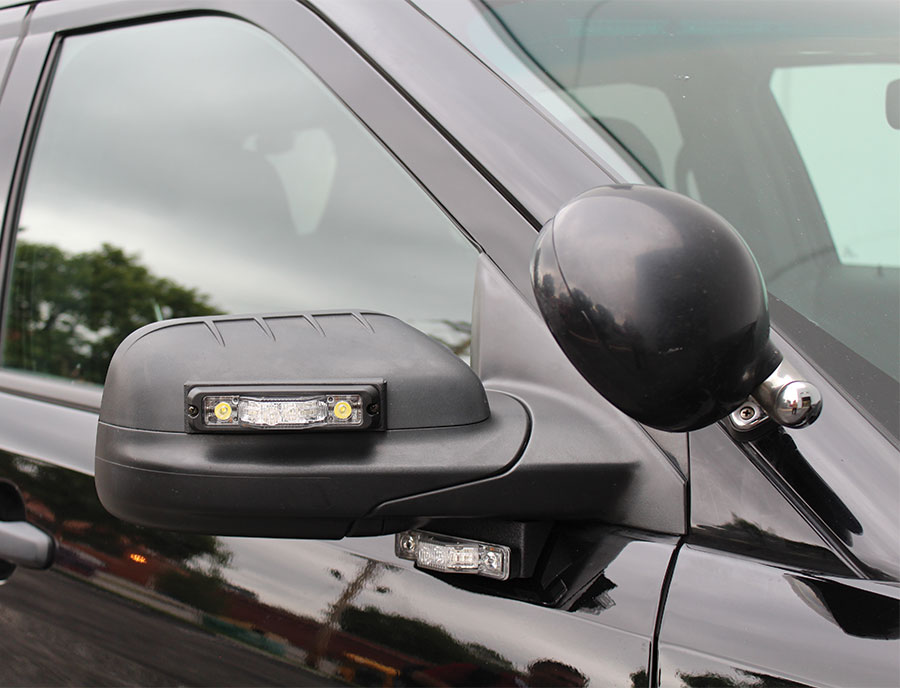

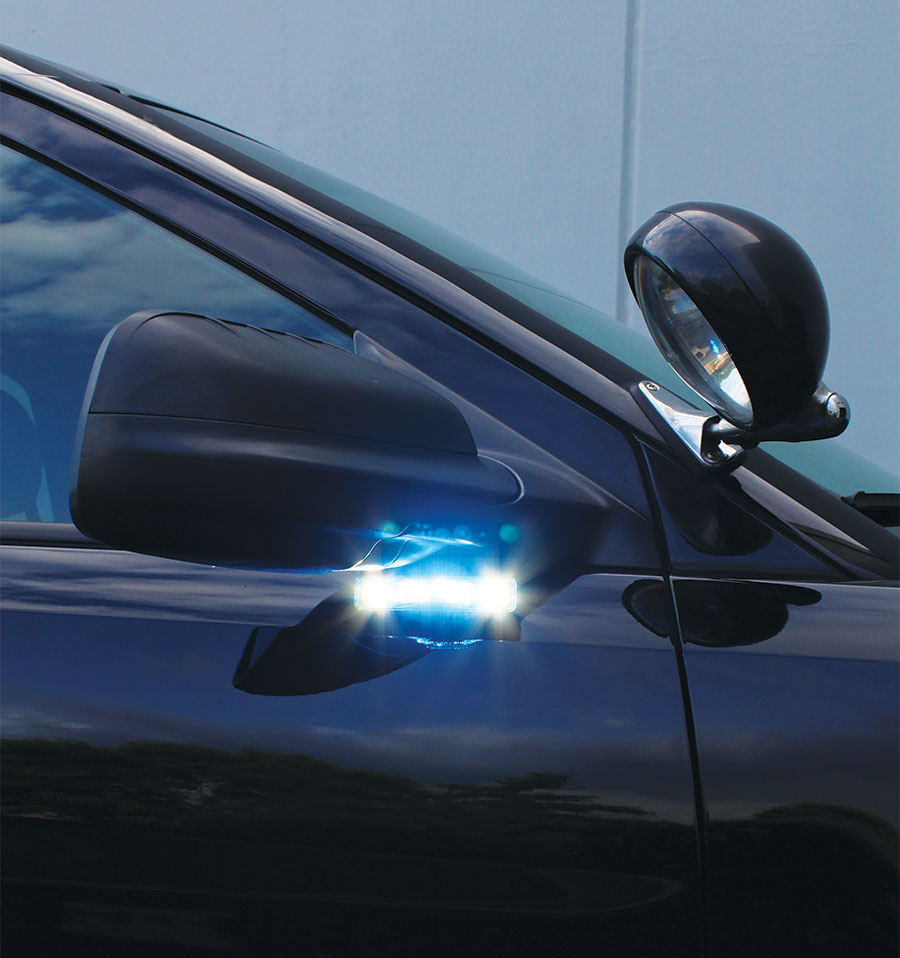

• New Bracket Offerings for all Pursuit Vehicles: Under the side mirror, front of side mirror, and side window mounting
• 29 Single Color Flash Patterns
• Will sync with Chase, MR6, and Mega Thin LEDs
• Red, White, Blue, Green, and Amber available - Grommet Mount Optional

Specifications:
Dimensions: 0.9" H x 4.5” L x 1.5” W (22.86 mm x 114.3 mm x 38.1 mm)
Voltage: 12-24 VDC
Single Color: 0.9 Amps @ 12 VDC
SAE J845 and J595 Class 1, E/Reg. 65, R10, IP67, Meets Photometric Requirements for California Title 13
Operating Temperature: -40°C to 77°C
5-Year Warranty
