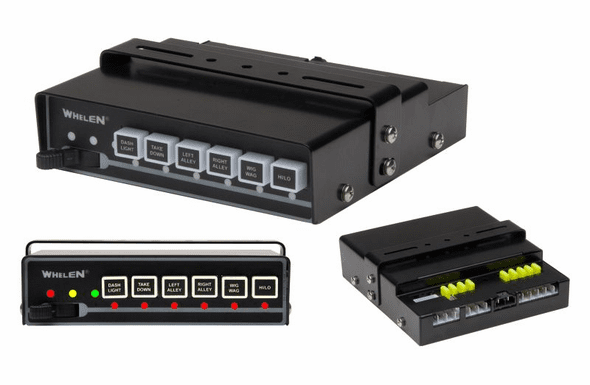

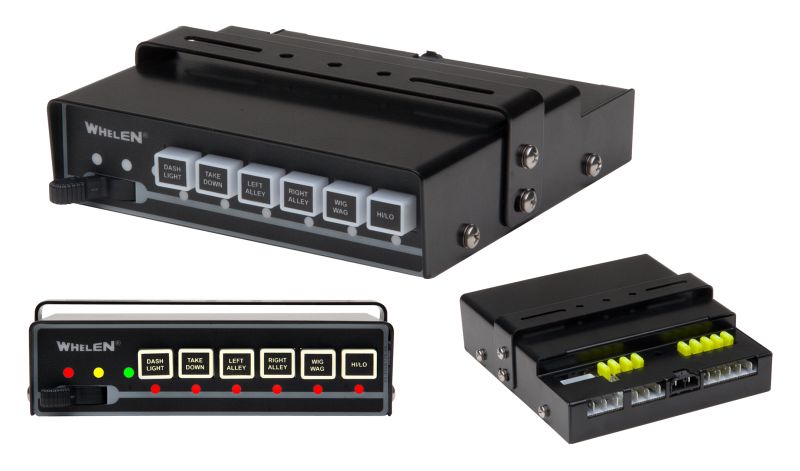

Whelen Switch Control for Standard Switching (Replaces PCCS9R)
Low Current Switching
3 Position Slide Switch
6 Momentary Switches
Aluminum alloy chassis covered by aluminum alloy black powder coated epoxy housing
Nine fuse terminals
Input polarity protection and output short circuit protection
PCCS9RW installation kit includes 66 press on function labels for the momentary switches.
Includes a bail mount bracket with 12” 4/C output harness, 12” 10GA power harness, and mounting hardware
Two year factory warranty
Size: 1.58” H x 5.99” W x 6.24” D
Amp Draw: 20.00 Amps per Switch
Installed beneath each momentary switch a red LED will illuminate when the switch is turned on. Installed above the slide switch will be three LED indicator lights of green, yellow, and red.
The momentary and slide switches have the ability to customize program with the nine outputs located on the rear of the PCCS9RW. The momentary and slide switches can be programmed with the aid of the Scan-Lock switch located in the rear of the PCCS9RW. The momentary switches will have the ability to be operate as one of four offered “Switch Type” options. The “Switch Type” options are Push on/Push off, Momentary, Flashing Output (60 FPM), and Timed Output (10 seconds). The momentary and slide switches can be configured to remotely activate any of the momentary switches and activate the siren enable output.
