Whelen® Vertex™ Universal Hide-A-Way Super-LED Light - Split - Specify Colors - VTX609

Item Code: vtx609split
Whelen® Vertex™ Universal Hide-A-Way Super-LED Light - <u> Split </u> - Specify Color - VTX609
$105.48$128.99
You Save 18%
Availability: Item typically In-StockMore Info Contact us for current stock status
Specify Color:

Total with selected add-ons:

QTY:

Whelen® Vertex™ Super-LED Light - Red/Blue Split - VTX609J

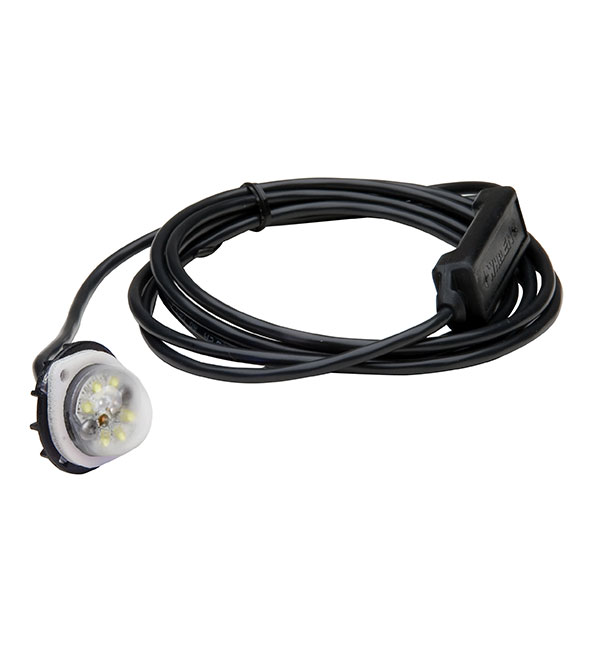

The Whelen® Vertex™ is a small semi-hemispheric LED lighthead and is perfect for most applications where size and intensity are critically important. Self-contained unit using an in-line combination lamp driver/flasher. Only 7/8" in height.

Sold Individually - Price is per light

Features:

  • Ultra small, self contained, semi-hemispheric LED light, for surface mount or internal mount within composite head lamps, cornering lamps and tail light assemblies.
  • 25 Scan-Lock™ flash patterns, includes synchronize feature for alternating and synchronous flashing of multiple lamps.
  • New lens technology enhances light distribution for optimum dispersion and intensity of the warning signal at critical angles.
  • Includes pre-wired and sealed 9' neoprene cable to the lighthead and lamp driver, with 4-22 gauge power, pattern and sychronize pigtail wires.
  • Aluminum base and advanced thermal heat management system is designed for endless years of trouble free service.
  • Lamp and in-line lamp driver are fully encapsulated for moisture and vibration resistance.
  • Omni-directional lighthead mounts in any position (orientation), vertically or horizontally.
  • Available in red, amber, white and blue. LED color must match color of the lens it is installed behind, except for clear lens
  • 10 – 16 VDC.
  • SAE Class 5.
  • No RFI noise emitted.
  • Two screws hold the lamp securely in place.
  • 1" hole make this LED module backwards compatible to HA238 and standard 1" Hide-A-Way style lamps.
  • Simple installation with no separate lamp drivers, flashers, ballast or power supplies to install.
  • Sold as a single lighthead with 9 foot cable and flasher

    Product Information
    Vertex™ Data Sheet (PDF, 436 KB)
