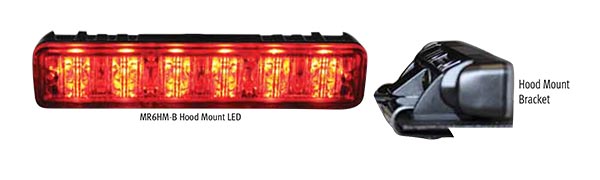

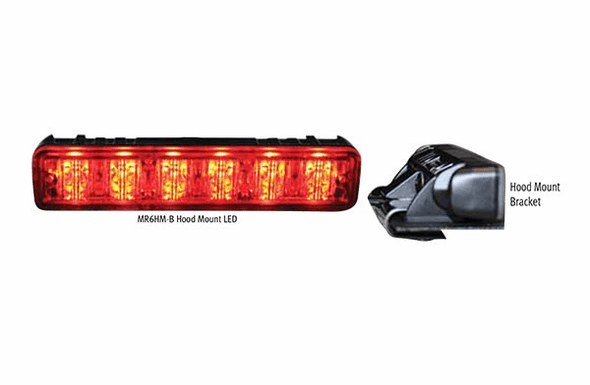

Code 3 MR6 LED Lighthead HOOD MOUNT Red LEDs

Item Code: MR6HM-R
Code 3 MR6 LED Lighthead HOOD MOUNT Red LEDs
You Save 14%
Availability: Item typically In-StockMore Info Contact us for current stock status

Total with selected add-ons:


Code 3 MR6 LED Lighthead HOOD MOUNT Red LEDs

Code3 MR6 LED Lightheads

Thin, low profile exterior light with black powder coated metal housing using TIR optical technology coupled with (6) high powered LEDs providing exceptional straight-on and off-angle performance.


  • Surface Mount, Flush Mount and Hood Mount allow mounting virtually anywhere on your vehicle
  • Multiple Flash Patterns with sychronized capabilities allowing Ultimate Flash Pattern Flexibility
  • High powered, water resistant, compact LEDs with TIR Optic Technology provide exceptional straight on and off-angle performance.

    Design Features:
  • TIR Optic LED Lightheads
  • (6) High Powered LEDs in Red, Blue, Amber, or White
  • Split Models available in R/B, R/W, B/W, B/A, A/W colors
  • 13 User Selectable Flash Patterns including Steady Burn
  • Sychronous Capabilities with other MR6 Lights
  • Simultaneous or Alternating Flashing

    Standard Options:
  • Available in Surface, Hood or Flush Mount (with grommet) Configurations
  • (2) screw mounting holes for surface and flush mount
  • Hood Mount can be mounted (3) different ways: (1) two fastener,
 clamping style (no holes need to be drilled); (2) through hole; and (3) double sided-tape.

  • Surface Mount Unit: 5.25 L x 0.77 D x 1.10 W(133.4 mm x 19.6 mm x 28 mm)
  • MR6 (Flush Mount) with Grommet (MR6FHKIT) size = 1.62 L x .67 D nbsp;x 5.77 W (17mm x 41.1mm x 146.5mm)
  • MR6 Hood Mount with Clamp Type Assembled size = 4.22 L x 1.80 D x 1.50 W(45.7mm x 38.1mm x 107.1mm)
  • MR6 Hood Mount Permanent Mount Type size = 4.22 L x 1.68 D x
 1 .00W(42.6mm x 25.4mm x 107.1mm)
  • 12/24 Volt
  • Meets SAE J595, California Title 13 when properly configured
  • ECE 65 Specifications for International Requirements
  • 5-Year Warranty on LEDs
